Track

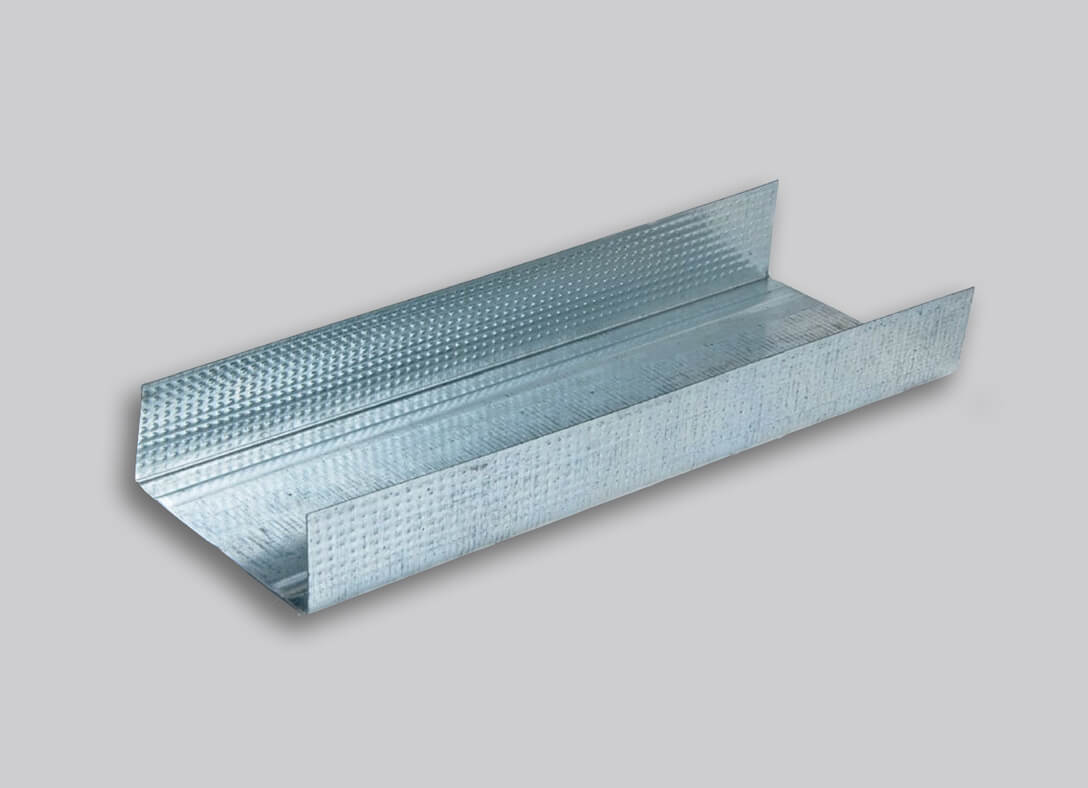

Metal U Track is a galvanised steel section used as the horizontal framework of a partition wall, in conjunction with metal C stud.
PARTITION PROFILES
| HTP DRY WALL PARTITIONING SYSTEM | |||||
|---|---|---|---|---|---|

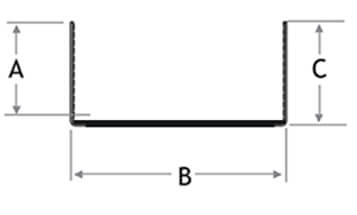

| PARTITION PROFILES | CAT No. | Dimension (A-B-C) mm | Thickness mm | Length mm | |
 |
TR 52 | 25 52 25 / 32 52 32 | 0.45 - 1.5 | 3000 | Web width ranging from 52 mm to 200 mm |
| TR 55 | 25 55 25 / 32 55 32 | 0.45 - 1.5 | 3000 | Flange height range from 25 - 90 mm | |
| TR 65 | 25 65 25 / 32 65 32 | 0.45 - 1.5 | 3000 | ||
| TR 72 | 25 72 25 / 32 72 32 | 0.45 - 1.5 | 3000 | Standard length 3000 mm | |
| TR 75 | 25 75 25 / 32 75 32 | 0.45 - 1.5 | 3000 | ||
| TR 94 | 25 94 25 / 32 94 32 | 0.45 - 1.5 | 3000 | ||
| TR 100 | 25 100 25 / 32 100 32 | 0.45 - 1.5 | 3000 | ||
| TR 125 | 25 125 25 / 32 125 32 | 0.45 - 1.5 | 3000 | ||
| TR 150 | 25 150 25 / 32 150 32 | 0.45 - 1.5 | 3000 | ||
| TR 175 | 25 175 25 / 32 175 32 | 0.45 - 1.5 | 3000 | ||
| TR 200 | 25 200 25 / 32 200 32 | 0.45 - 1.5 | 3000 | ||
| Custom sizes of thickness, length, width and flanges can be made upon request | |||||
