Stud

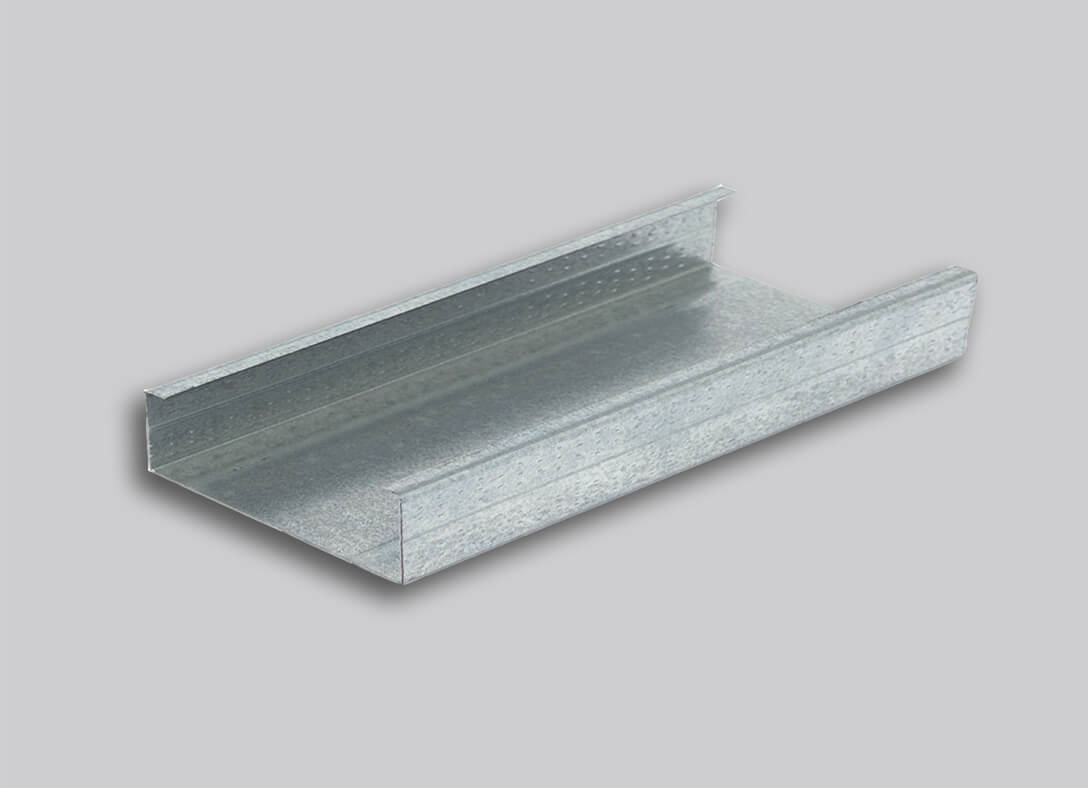

Metal C Studs are lightweight C shaped galvanized steel sections used vertically to form a partition wall.
PARTITION PROFILES
| HTP DRY WALL PARTITIONING SYSTEM | |||||
|---|---|---|---|---|---|

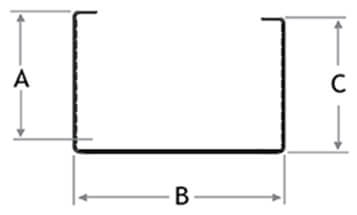

| PARTITION PROFILES | CAT No. | Dimension (A-B-C) mm | Thickness mm | Length mm | |
 |
ST 50 | 32 50 34 / 33 50 36 | 0.45 - 1.5 | 3000 | Web width ranging from 50 mm to 198 mm |
| ST 53 | 32 53 34 / 33 53 36 | 0.45 - 1.5 | 3000 | ||
| ST 63 | 32 63 34 / 33 63 36 | 0.45 - 1.5 | 3000 | Standard length 3000 mm, can be customised up to 14000 mm | |
| ST 70 | 32 70 34 / 33 70 36 | 0.45 - 1.5 | 3000 | ||
| ST 73 | 32 73 34 / 33 73 36 | 0.45 - 1.5 | 3000 | ||
| ST 92 | 32 92 34 / 33 92 36 | 0.45 - 1.5 | 3000 | ||
| ST 98 | 32 98 34 / 33 98 36 | 0.45 - 1.5 | 3000 | ||
| ST 123 | 32 123 34 / 33 123 36 | 0.45 - 1.5 | 3000 | ||
| ST 148 | 32 148 34 / 33 148 36 | 0.45 - 1.5 | 3000 | ||
| ST 173 | 32 173 34 / 33 173 36 | 0.45 - 1.5 | 3000 | ||
| ST 198 | 32 198 34 / 33 198 36 | 0.45 - 1.5 | 3000 | ||
| Custom sizes of thickness, length, width and flanges can be made upon request | |||||
